Switch Block
Route control flow based on a boolean condition
Overview

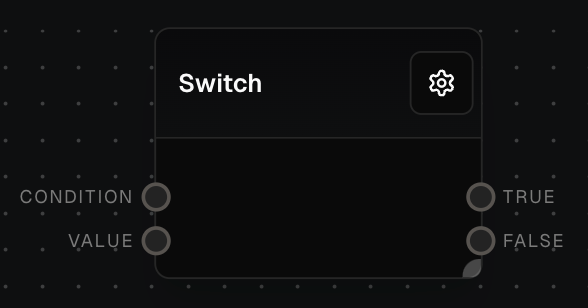

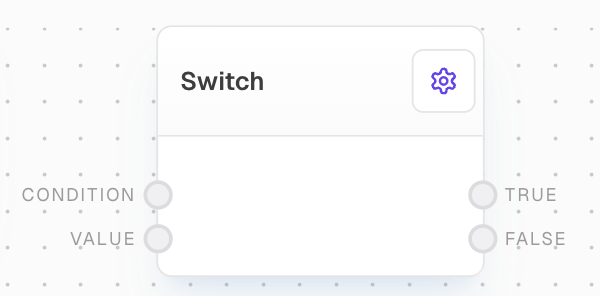

The Switch Block is a control flow block that routes the input value to different outputs based on a boolean condition. It evaluates the condition and directs the value to either the True or False output port accordingly.Key Features
- Routes values based on a condition
- Control flow excluded values for unmatched paths
Inputs
If this is truthy, the value will be passed through the True port. Otherwise, it will be passed through the False port. An unconnected port is considered false.
The value to pass through the True or False port. If unconnected, it will be undefined.
Outputs
The
value passed through if the condition is truthy. Control-flow-excluded if condition is falsy.The
value passed through if the condition is falsy. Control-flow-excluded if condition is truthy.Editor Settings
If enabled, unconnected value input is control-flow-excluded. If disabled (legacy behavior), unconnected value will pass through undefined.
The width of the block in pixels.
Example: Route a message based on a condition
- Create a Bool Block and set its value to
true. - Create a Text Block with the value “Hello, World!”.
- Create a Switch Block. Connect the Bool Block to
Conditionand the Text Block toValue. - Add two Text Blocks to display the output, one connected to True and one to False.
- Run the flow. The “Hello, World!” message should appear in the Text Block connected to True.
- Change the Bool Block to
falseand run again. The message should now appear in the Text Block connected to False.
Error Handling
The Switch block will not throw an error under normal circumstances. The following values are considered falsy:- Boolean
false - Empty string
- Empty array
- Control-flow-excluded values
- Undefined/unconnected inputs
- Empty chat messages
FAQ
What happens if the Value input is not provided?
What happens if the Value input is not provided?
If “Don’t run unconnected value” is enabled (default), the value will be control-flow-excluded. If disabled, undefined will be passed through.
Can I use complex conditions with the Switch block?
Can I use complex conditions with the Switch block?
The Switch block accepts any input type for the condition and coerces it to a boolean. For complex conditions, you may want to evaluate them before the Switch block.
