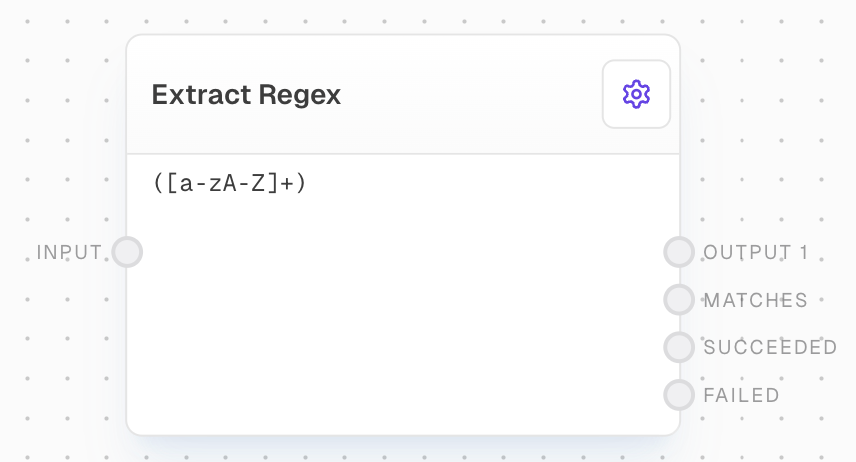

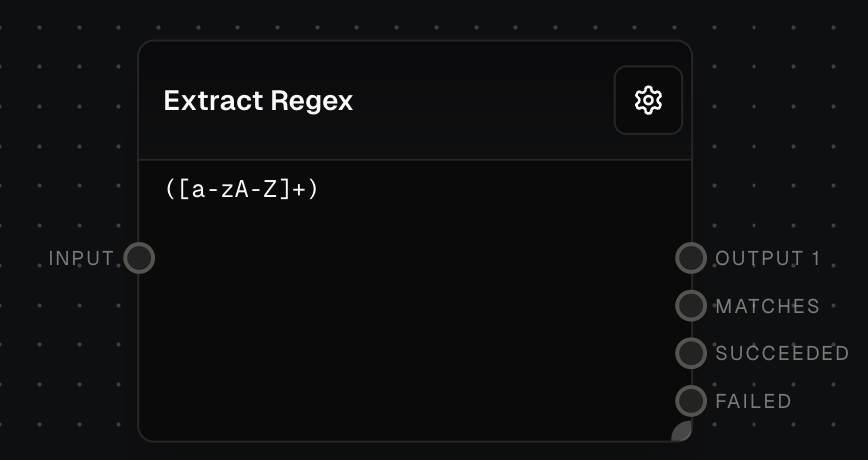

Extract with Regex Block Screenshot

​
Overview

The Extract With Regex Block allows you to extract one or more strings from an input string using a regular expression. It’s useful for parsing responses from Language Models (LLMs), extracting specific values from files, or any scenario where you need to match patterns in text.

​
Key Features

  • Extract multiple strings using capture groups
  • Configurable error handling for failed matches
  • Support for multiline mode
  • Flexible output options including all matches and success/failure flags

​
Inputs

​
input
string
required
The string to match the regex against. Non-string inputs will be coerced to strings.
​
regex
string
The regular expression to use for matching. Only available when “Use Regex Input” is enabled in settings.

​
Outputs

​
output1, output2, etc
string
One output port per capture group in the regex, containing the matched content for that capture group.
​
matches
string[]
An array of all matched strings from the first capture group.
​
succeeded
boolean
True if the regex matched the input string, false otherwise.
​
failed
boolean
True if the regex did not match the input string, false otherwise.

​
Editor Settings

​
errorOnFailed
boolean
default:false
If enabled, the block will error if the regex doesn’t match the input string.
​
multilineMode
boolean
default:false
Enables multiline mode for the regex, affecting ^ and $ behavior.
​
regex
string
default:"([a-zA-Z]+)"
The regular expression to use for matching.
​
useRegexInput
boolean
default:false
When enabled, allows the regex to be provided via an input port instead of being set in the settings.

​
Example: Extract a command from an LLM response

  1. Create a Chat Block with a System Prompt:
    Your reply can initiate commands, for example `!hello` will cause "Hello world" to appear for the user. Try it out now!
  2. Add an Extract With Regex Block and connect the Chat Block’s output to its input.
  3. Set the Regex to !([a-zA-Z]+).
  4. Connect the Output 1 port to a Text Block to display the matched command.

​
Error Handling

  • The block will error if the input string is not provided or if the regex is invalid.
  • If “Error on failed” is enabled, the block will error when the regex doesn’t match the input.

​
