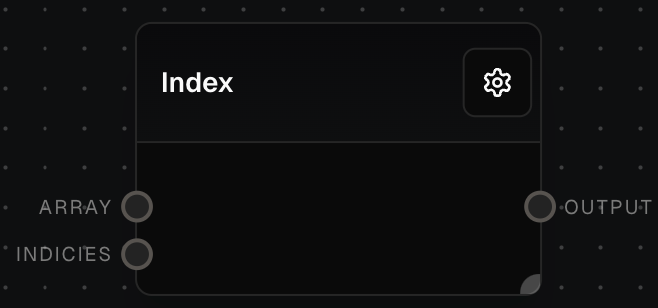

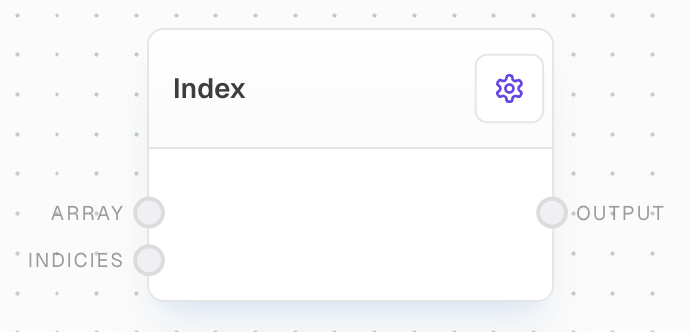

Index Block Screenshot

​
Overview

The Index Block allows you to retrieve values from an array at specified indices. It can return a single value when given a single index or multiple values when provided with an array of indices. This block is particularly useful for extracting specific elements from arrays or for reordering array elements based on a set of indices.

​
Key Features

  • Retrieve a single value at a specified index
  • Extract multiple values using an array of indices
  • Supports negative indices for accessing elements from the end of the array
  • Option to invert the selection to get all values except those at specified indices

​
Inputs

​
array
any[]
required
The input array from which to retrieve values.
​
indicies
number | number[]
required
The index or array of indices to retrieve. Can be a single number or an array of numbers.

​
Outputs

​
output
any | any[]
The value(s) retrieved from the input array at the specified index/indices. If a single index is provided or only one value is selected, this will be a single value. If multiple indices are provided, this will be an array of values. If no values are selected, this output will be control-flow-excluded.

​
Editor Settings

​
invert
boolean
default:false
When enabled, inverts the selection to return all values except those at the specified indices.

​
Example: Extracting Specific Elements from an Array

  1. Create an Array Block with values [10, 20, 30, 40, 50].
  2. Add an Index Block and connect the Array Block to its array input.
  3. Create a Number Block with value 2 (or an Array Block with values [0, 2, 4]) and connect it to the Index Block’s indicies input.
  4. Run the flow. The Index Block’s output will be 30 (or [10, 30, 50] if using an array of indices).

​
Error Handling

  • If an index is out of range (less than 0 or greater than array length), the block will throw an error
  • If the array input is not an array, the block will throw an error
  • If no values are selected, the output will be control-flow-excluded

​
FAQ

Yes, negative indices are supported. They count from the end of the array, so -1 refers to the last element, -2 to the second-to-last, and so on.
If you provide an array of indices with duplicates, the block will return the corresponding values, including duplicates. For example, with input array [10, 20, 30] and indices [0, 1, 1], the output will be [10, 20, 20].
When invert is enabled, the block will return all values from the array except those at the specified indices. For example, with input array [10, 20, 30, 40, 50] and indices [1, 3], the output with invert enabled would be [10, 30, 50].

​
